Gypsum Plaster Additives: Strength, Workability and Setting Control

Setting control, water retention and strength for gypsum plasters, putties and screeds.

LANDU: Your Gypsum Plaster Additives Manufacturer

Gypsum sets by crystallisation, not by slow hydration like cement, so its additives do a different job: they slow the set to a usable 60–180 minutes, hold water until the crystals have interlocked, and bind the surface so it neither powders nor cracks. Get the balance wrong and the plaster is either too fast to spread or too weak to hold a screw. This page covers the Landercoll®, Accurate® and NOVASTAR® grades for every gypsum-based product: hand-applied and machine-sprayed plaster, gypsum putty, joint compound, bonding adhesive, gypsum self-leveling and plasterboard, with starting dosages and the fixes for the problems plasterers report.

Gypsum products covered and their EN 13279-1 types

ProductEN 13279-1 typeTypical layerKey requirementsAdditive priorities
Hand-applied gypsum plasterB1 (gypsum building plaster), B4 (lightweight)8–15 mmWorking time 60–120 min, flexural ≥ 1.0 N/mm², compressive ≥ 2.0 N/mm²Retarder, water retention, sag resistance
Machine-sprayed plasterB1 / B48–20 mmWorking time 90–180 min, pumpability, no sag, surface hardnessRetarder, medium-viscosity cellulose ether, starch ether, defoamer
Gypsum plaster with enhanced surface hardnessB78–15 mmSurface hardness ≥ 6 N/mm²Lower water/gypsum ratio via PCE, RDP
Thin-coat / finishing plaster, gypsum puttyC6 / C71–3 mmSmooth sandable surface, no cracking, adhesion to boardGypsum-grade HEMC, rigid RDP, retarder
Joint compound (setting type)C7 / national standardsJoints and tapesCrack-free joints, adhesion to paper, workabilityCellulose ether + starch ether + retarder
Gypsum bonding adhesive (plasterboard dabs, gypsum-block adhesive)EN 14496 (boards), EN 12860 (blocks)Dabs 10–20 mm; block joints 1–3 mmWorking time on the wall, no sag of the dab, bond to board paper and to concrete or brickCellulose ether, retarder, rigid RDP for dense substrates
Gypsum-based self-leveling screedEN 13813 CA class10–40 mmFlow, strength class CA-C20-F4 and above, low shrinkagePCE, low-viscosity cellulose ether, defoamer, retarder
Plasterboard / prefabricated elementsEN 520 / factory specificationsBoard core, blocksControlled setting on the line, no strength lossLiquid retarder AR-P / GR-P

What makes gypsum plaster stronger

Strength in gypsum is governed by the water-to-gypsum ratio: every 0.1 reduction in w/g raises compressive strength noticeably because fewer pores are left when the excess water evaporates. Additives raise strength in four ways:

  1. Water reduction — NOVASTAR® PCE 570P is the gypsum-system grade (water-reduction rate 37 % on the product page; recommended for gypsum self-leveling, plastering, putty and joint filling, gypsum adhesives and decorative gypsum), with 580P compatible. The TDS-series 590P, a powder polycarboxylate with a water-reduction rate ≥ 25 % (TDS, cement basis) at 0.1–0.5 % of binder, lowers water demand in B7 surface-hardness plasters, gypsum self-leveling and precast elements. Water reduction in calcium sulphate binders depends on the gypsum source and must be confirmed in the laboratory.
  2. Complete hydration — Landercoll® cellulose ether holds water in the layer so the hemihydrate converts fully; a plaster that dries before it sets is soft and powdery regardless of w/g.
  3. Binding and flexibility — Accurate® RDP forms a polymer network between crystals, raising flexural strength and adhesion to concrete ceilings and boards, and bridging micro-cracks.
  4. Correct retarder dosage — the NOVASTAR® protein / amino-acid retarders extend working time without the strength loss that over-dosed citric or tartaric acid causes; their technical data sheets state “no reduction in the final strength of gypsum-based products” and “improving the surface hardness of gypsum materials”.

What weakens it: cellulose ether above 0.3 % (slower set, lower strength), excess water added on site to compensate for a short working time, and air entrained during spraying without a defoamer.

Grade selection

Landercoll® cellulose ether. Two HEMC grades are made for gypsum: ME3570-G (35,000–45,000 mPa·s Brookfield, 2 %) and ME4080-G (30,000–40,000 mPa·s), both “specially modified for gypsum-based construction materials” with water retention “excellent”, heat resistance “excellent” and final consistency “superior” — ME4080-G with sag resistance “superior”, ME3570-G “good”. The standard HPMC/HEMC grades K75, K100, EM60, EM80 and EM100 also list “gypsum base plasters/renders” on their TDS; K04 is the self-leveling grade.

ProductGypsum-grade HEMCStandard grade alternativeStarting dosage
Machine-sprayed plasterME4080-G (sag resistance “superior”)EM60 / K750.10–0.20 %
Hand-applied plasterME3570-GK100 / EM1000.15–0.25 %
Gypsum putty / thin-coat finishME3570-GK100 / EM1000.20–0.30 %
Joint compound (powder)ME3570-G + starch ether—0.20–0.30 %
Gypsum bonding adhesive (board dabs, block adhesive)ME3570-G (sag resistance for dabs)K100 / EM1000.20–0.30 %, plus 1–2 % rigid 5011N on smooth concrete
Ready-mixed joint filler (paste)K40HS / K75HS (surface-treated, delayed solubility; TDS: joint fillers)—0.3–0.5 %
Gypsum self-levelingK04 (300–500 mPa·s)—0.03–0.08 %

Accurate® redispersible polymer powder

UseGrade (TDS Tg / MFFT)Dosage
Plaster on smooth concrete ceilings, adhesionRigid 5011N or 4012N (Tg 10 ± 5 °C / 4 °C)1–2 %
Gypsum putty, no powdering, sandableRigid 5011N1–2 %
Putty or plaster over plasterboard joints and dissimilar substratesSemi-flexible 4025N (Tg 0 °C / 1 °C)2–3 %
Humid rooms, bathroomsFlexible 5045N (Tg −10 ± 5 °C), acrylic–silane 9028E (Tg 5 °C) / 9055E (Tg −15 °C) — both TDS name gypsum among the binders — or hydrophobic 8032H / 8048H (8048H TDS: waterproof putty)3–5 %

NOVASTAR® specialty additives

AdditiveGradesTDS dataDosageFunction

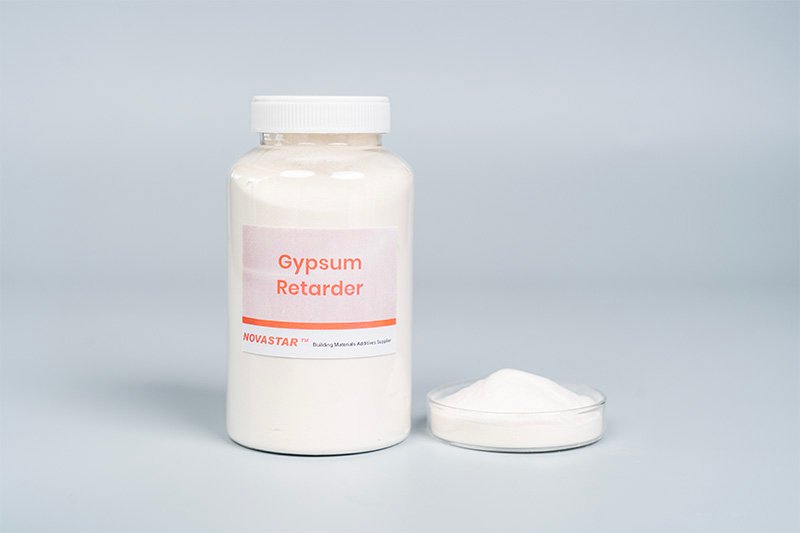

Gypsum retarder, powderP100, P200Mixture of degraded polyamides salified with calcium (protein type); ivory-white powder; solubility 800–1,000 g/L; moisture ≤ 3 %; shelf life 3 years0.02–0.10 %Standard working-time control for plaster, putty, joint compound, prefabricated elements
P300Amino-acid type; white to off-white powder; solubility 500–800 g/L; TDS dosage 0.05–0.3 % of binder; shelf life 24 months0.05–0.10 %Working time proportional to dosage, steady setting effect
P400Modified amino-acid type; white to pale-yellow powder; solubility 400–700 g/L; TDS dosage 0.001–0.3 %; shelf life 24 months0.01–0.08 %High retarding effect at low dosage, improved workability
AR-PAlkali-resistant modified amino-acid type; bulk density 400–600 g/L; pH 6–8 (1 % solution); ≥ 90 % through 0.3 mm; TDS dosage 0.001–0.3 %0.01–0.08 %Stable retardation in high-pH systems (gypsum–lime, gypsum–cement)
Gypsum retarder, liquidAR-P (liquid), GR-PBrown liquids; AR-P active 41–44 %, pH 7–9, viscosity 40–50 mPa·s, alkali-resistant; GR-P active 43–45 %, pH 4–6, viscosity 60–70 mPa·s; 25 / 200 / 1,000 kg containersper line trialPlasterboard and prefabricated production: extends initial set without slowing final hardening, no strength loss, reduces slurry water demand
PCE superplasticizer570PGypsum-based system, water-reduction rate 37 % (product page); recommended for gypsum self-leveling, plastering, putty and joint filling, gypsum adhesives, decorative gypsum and gypsum precast0.10–0.30 %First choice for calcium sulphate binders; 580P compatible
PCE superplasticizer590PPowder, 97 % solids, water reduction ≥ 25 % (cement), moisture ≤ 3 %, chloride ≤ 0.02 %; TDS dosage 0.1–0.5 % of binder0.10–0.50 %Water reduction for B7 plasters, self-leveling and precast; not to be combined with naphthalene sulfonate
Starch etherST2109 (5 % viscosity 1,000–5,000 mPa·s), ST1506-A (500–3,500 mPa·s)TDS: ST2109 for machine-applied mortars or gypsum plasters, excellent anti-sag; ST1506-A for putty and hand-applied plasters0.03–0.08 %Anti-sag in spray plaster, creamy joint compound, less trowel drag
Powder defoamerP805 (standard), P806 (alkali-resistant), P807 (low-temperature)—0.10–0.20 %Removes bubbles in sprayed plaster and gypsum self-leveling
PP fibre3–6 mm—0.05–0.10 %Crack control in thick machine plaster

Dosages are percentages of the dry mix for laboratory starting points; the retarder TDS state that the addition “must be pre-tested according to the raw materials”. Gypsum source (natural, FGD, phosphogypsum) changes retarder demand significantly.

Hand-applied vs machine-sprayed: different priorities

Hand-applied plasterMachine-sprayed plaster
Working time60–120 min: plasterer mixes small batches90–180 min: one mix feeds the machine for hours
RetarderP200 or P400 at 0.02–0.05 %P300 / P400 at 0.04–0.08 %
Cellulose etherME3570-G, 0.15–0.25 %ME4080-G, 0.10–0.20 % — lower viscosity for the pump, sag resistance “superior”
ThixotropyLess critical (ST1506-A)ST2109 0.03–0.05 % so the layer stands at 15–20 mm
AirLowSpraying entrains air: P805 defoamer 0.1–0.2 % to protect strength
Common failureShort working time, cracking on absorbent wallsSagging, surface bubbles, soft surface from over-watering

Troubleshooting

SymptomLikely causeAdjustment
Sets in 30 min, unworkableRetarder too low for this gypsum source; hot waterRaise P300 / P400 by 0.02 %; test each gypsum batch
Still soft after 24 hOver-retarded; cellulose ether too highCut retarder by 30 %; keep cellulose ether ≤ 0.25 %
Powdery surfaceWater left before set completed; no binderME3570-G cellulose ether; 1–2 % RDP 5011N; avoid re-wetting the surface
Hollow sound on concrete ceilingsNo adhesion to dense substrate2 % RDP; bonding primer; roughen or spatterdash

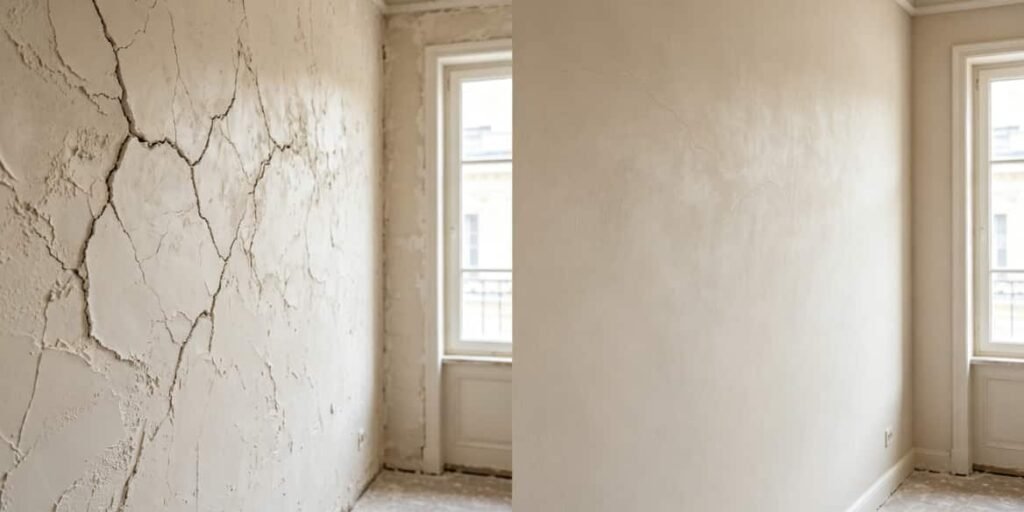

Cracks in thick coatsShrinkage from excess water; thick single passPCE 570P (or 590P) to cut water; fibre 0.1 %; two passes above 15 mm
Sagging of sprayed plasterViscosity/thixotropy too lowME4080-G at 0.20 %; ST2109 0.05 %
Bubbles and pinholes after sprayingEntrained airP805 defoamer 0.15 %
Low surface hardness (B7 target missed)High w/g570P 0.3 %; reduce water 20 %; 1 % RDP
Joint compound cracks along tapeToo fast drying, low flexibilityME3570-G 0.25 % + ST1506-A 0.05 %; semi-flexible 4025N 2 %
Retarder loses effect in a gypsum–lime plasterHigh pH deactivates standard retarderAlkali-resistant AR-P
Yellowing or odourGypsum impurities or retarder overdoseChange retarder grade; check gypsum source

Starting formulations (dry mix, laboratory basis)

ComponentMachine-sprayed plasterGypsum finishing puttyGypsum self-leveling
β-hemihydrate (natural or FGD)80–85 %60–70 %α-hemihydrate / anhydrite 60–70 %
Hydrated lime2–4 %——
Limestone filler / perlite10–15 % (perlite 2–4 % for B4)25–35 %Sand 0.1–0.5 mm 25–35 %
Landercoll® cellulose etherME4080-G 0.15 %ME3570-G 0.25 %K04 0.05 %
Accurate® RDP— (1 % 5011N on concrete ceilings)5011N 1 %4025N 1.5 %
NOVASTAR® starch etherST2109 0.04 %ST1506-A 0.03 %—
NOVASTAR® retarderAR-P 0.05 % (lime-containing)P400 0.03 %P400 0.03 %
NOVASTAR® PCE 570P——0.25 %
NOVASTAR® defoamer P8050.15 %—0.15 %
Accelerator (fine dihydrate)0.1–0.5 % if needed——

Starting points only; retarder and accelerator must be re-tuned for each gypsum source.

Why gypsum producers source from LANDU

Gypsum formulations are unforgiving of additive variation: a retarder lot 20 % off strength shifts setting time by half an hour. LANDU produces Landercoll® cellulose ethers, Accurate® RDP and NOVASTAR® retarders and PCE in its own plants in Shandong (three production bases, 75,000 t/year) under ISO 9001 with batch certificates, supplies REACH-compliant grades to more than 60 countries, and tests setting time, water retention and strength on customer gypsum in its Jinan laboratory. European stock is held with partners in several countries, including Greece, Spain and Italy; factory lead time 7–15 working days. Retarders ship in 25 kg paper bags (powder) or 25 / 200 / 1,000 kg containers (liquid); cellulose ether in 25 kg bags on 500–600 kg pallets.

Gypsum Plaster Additives: Frequently Asked Questions

Answers on additive selection, testing, samples and supplier qualification.

Is there a "plaster strength additive", and which one increases gypsum plaster strength the most?

Water reduction. NOVASTAR® PCE 570P, the gypsum-system grade, or the TDS-series 590P at 0.1–0.5 % of binder lowers the water/gypsum ratio, which raises compressive strength and surface hardness more than any binder additive — confirm the achievable reduction on your gypsum, since the 590P TDS figure (≥ 25 %) is measured in cement. RDP then adds flexural strength and adhesion; cellulose ether protects strength by ensuring complete hydration.

What is the right cellulose ether dosage for gypsum plaster?

0.10–0.20 % for machine-sprayed plaster (Landercoll® ME4080-G), 0.15–0.25 % for hand-applied plaster (ME3570-G) and 0.20–0.30 % for gypsum putty (ME3570-G). Above 0.3 % the set slows and strength falls.

Why use the gypsum-grade HEMC instead of standard HPMC?

ME3570-G and ME4080-G are specially modified for gypsum-based materials: the TDS rate water retention and heat resistance "excellent" and final consistency "superior", so the plaster holds water through the set without a soft surface. Standard K75/K100 and EM60–EM100 also list gypsum plasters and remain the economical alternative.

How much gypsum retarder should I add?

The TDS ranges are 0.05–0.3 % of binder for P300 and 0.001–0.3 % for P400 and AR-P; most hand plasters sit at 0.02–0.05 % and machine plasters at 0.04–0.08 %. Test every new gypsum lot: FGD and natural gypsum can differ by a factor of two in retarder demand. Use AR-P where lime or cement raises the pH.

Does RDP work in gypsum, or only in cement?

It works in both. In gypsum, 1–2 % rigid Accurate® 5011N stops powdering and improves adhesion to concrete and plasterboard; 2–3 % semi-flexible 4025N bridges joints; flexible 5045N, the acrylic–silane 9028E / 9055E or hydrophobic 8048H are used in bathrooms. Dosages are lower than in cement systems.

Can LANDU test my gypsum?

Yes. Send 5 kg of your gypsum or finished plaster; we report setting time with three retarder dosages, water retention, flexural and compressive strength and surface hardness, and recommend a complete additive package.

What additives are used in gypsum plaster?

Four, in a typical bag: a retarder to stretch the set from a few minutes to 60–180 minutes (NOVASTAR® P300 or P400 at 0.01–0.10 %); a cellulose ether for water retention and sag resistance (gypsum-grade HEMC ME3570-G or ME4080-G, or K100 / EM100, at 0.10–0.30 %); a starch ether for sag and pumpability in machine plaster (ST2109, 0.02–0.05 %); and, where the plaster goes on smooth concrete or needs a harder surface, 1–2 % rigid RDP (5011N) and a PCE to cut the water. A powder defoamer and PP fibre are added for sprayed plaster. The balance depends on the gypsum source, so the dosages above are starting points for your trial.

What are the main gypsum retarder applications?

Anywhere a gypsum binder has to stay workable longer than it naturally would: hand- and machine-applied plaster, gypsum putty and thin-coat finish, setting-type joint compound, gypsum bonding adhesive and gypsum self-leveling screed, and plasterboard or block production, where the liquid grades AR-P and GR-P are dosed on the line. Retarders do not help drying-type (ready-mixed) joint compounds, which contain no setting binder. Because the dose–response depends on the gypsum source, confirm setting time and strength on your own gypsum.

Which gypsum products does LANDU supply additives for?

All of the products in the first table on this page: gypsum building plaster (hand and machine), thin-coat and finishing plaster, gypsum putty, setting-type joint compound, gypsum bonding adhesives for boards and blocks, gypsum-based self-leveling screed and plasterboard. Cement-based self-leveling compounds have their own page, as do skim coat and wall putty in cement systems.
